HK2000 radio equipment of HF range
The HK2000 are a generation of universal radio stations of the high frequency range (HF). These radio stations allow for automatic two-way adaptive radio communication on routes over small, medium and long distances, support traditional modes of operation (telephone, telegraph), as well as provide data transmission over a radio channel.
The implementation of additional service functions is done only by downloading the required software version without upgrading the hardware of the equipment.

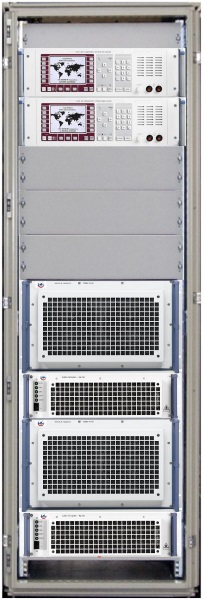

All radio station modules have a compact design and can be installed on a 19-inch rack.
All radio stations of the 2000 series can interact with external wireline and wireless telecommunication systems of various types, both with classical (ATM, UATMS) and with specialized (for example, TETRA, MPT1327) existing radio systems of different departments (police, emergency, etc.).
For operation with different types of antennas, radio stations of the 2000 series can be equipped with automatic antenna-matching devices.
Specifications
|
Specification |
Value |
|
1. Main characteristics | |
|
Frequency range, MHz |
от 1,5 до 29,999 |
|
Frequency tuning step, Hz |
1 |
|
Frequency instability, not less than |
2×10-8 |
|
Transmitter power at an agreed load of 50 Ohm, W HK2100 HK2500 HK2900 |
(100±0,5) (500±0,5) (1000±0,5) |
|
Emission class |
A1A (CW), J3E (SSB), (USB/LSB selectable), H3E (AME, USB), J7B (A7J), B8E (ISB), F1B (FSK, AFSK, F3E, F1C, A3E (AM), B7D |
|
Serial control interfaces |
RS-422, RS-485 or RS-232-C |
|
High frequency interfaces |
N-type socket |
|
2. Characteristics of the transmitter | |
|
Suppression of harmonics, no less than |
50 dB (1,5 mWt), 60 dB for all harmonics above 100 MHz |
|
Suppression of intermodulation products, dB, not less than |
32 |
|
Suppression of harmonics, dB, no less than |
60 |
|
Suppression of out-of-band emissions, dB, not less than |
60 |
|
3. Characteristics of the receiver | |
|
Input impedance, Ohm |
50 |
|
Sensitivity (without preamplifier, without a digital preselector for a signal-to-noise ratio of 10 dB) |
A1A - 0.45 μV; J3E, J7B - 1.1 μV; H3E (AM) 3.0 μV |
|
Blocking (useful signal 2 mV, interference signal 5 V) |
Decrease of sensitivity by 3 dB at Df> 30 kHz |
|
Suppression by a mirror channel (Df> 30 kHz), dB, not less than |
80 |
|
Intermediate frequency suppression (Df> 30 kHz), dB, not less than |
80 |
|
4. Power Supply | |
|
AC Power Supply |
Single / three-phase network, phase voltage 230 V, + 10 / -15%, 47-63 Hz |
|
DC Power Supply |
24 V (working at a power of 100 W) |
|
5. Dimensions and weight | |
|
Dimensions (W × H × D), mm, not more than RF Receiver / Exciter RF power amplifier Power source |
483 × 132 × 340 (19" 3U) 483 × 281 × 570 (19" 6U) 483 × 192 × 570 (19" 4U) |
|
6 Operating conditions | |
|
Operating temperature range |
From minus 25 to plus 55 ° C |
|
Storage temperature range |
From minus 40 to plus 85 ° C |
